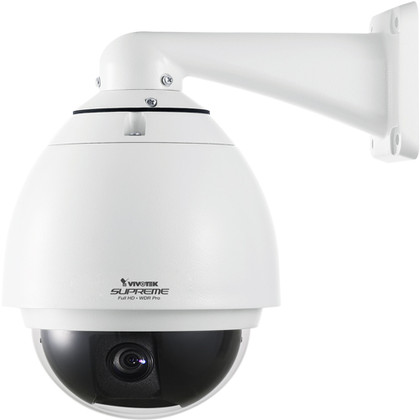

Vivotek SD9361-EHL H.265 1080P Dome PTZ IP Camera 20x

Vivotek SD9361-EHL Speed Dome PTZ IP Camera introduces a new age in advanced Pan/Tilt/Zoom security cameras. The unit is packed with cutting edge functions and attributes including the latest H.265 compression to full 1080P HD video surveillance at up to 60fps. The newest H.265 compression and Smart Stream II promise the most efficient bandwidth possible, while quad streaming plus H.264 and MJPEG codecs are also selectable. The PTZ is also equipped for adverse lighting conditions thanks to true day/night function allowing low light performance to 0.01 Lux while it’s Wide Dynamic Range Pro ensures optimal viewing for high contrast scenes. Added intelligence is also richly provided with diverse integration capabilities supporting numerous IT protocols to ONVIF compliance for easy use with 3rd party security systems. Smart abilities such as PTZ Auto Tracking to on-board Recording with Micro SDHC/SDXC card slot pair with perks like Event Notification and easy user operation for a top notch IP PTZ Camera system.

The Vivotek SD9361-EHL IP PTZ Camera is outfitted with a 20x Optical Zoom and high speed, highly accurate pan/tilt mechanism ensuring top quality performance. All the commonly desired attributes like auto pan or patrol, preset positions and tours to RS-485 input are built-in promising maximum PTZ versatility. Electronic Image Stabilization (EIS) to defog enhancements or Two Way Audio and Digital I/O are all also accessible delivering you high performing, comprehensive surveillance system abilities. Finally, the Vivotek SD9361-EHL H.265 HD PTZ Camera is constructed to withstand the harshest environments and conditions. Rated to an impressive IP68 and NEMA 4X the Dome PTZ is absolutely weatherproof while even more the PTZ is High Impact IK10 Vandal proof for the most rugged design. Flexible Power input allows 24VDC or 24VAC as well as UPOE which is Cisco's Universal Power over Ethernet standard allowing up to 60 watts of PoE power.

Vivotek SD9361-EHL HD PTZ Camera Features:

• 20x Optical Zoom
• 1080P Full HD CMOS Sensor
• 60fps at full 1080P (1920x1080)
• H.265 Compression
• True Day/Night ICR
• 360° Continuous Pan and 110° Tilt
• WDR Pro, SNV, 3DNR, Defog, EIS
• Smart Stream II for Optimal Bandwidth Efficiency
• Audio Detection, Video Motion Detection, PTZ Auto Tracking and more
• Built-in SD/SDHC/SDXC Card Slot for On-board Storage
• Weatherproof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
• -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
• 24VDC, 24VAC or UPoE Power Sources

Vivotek SD9361-EHL More Specifications:

• 2 Megapixel (1920 x 1080) 1/3" Progressive CMOS Image Sensor
• 20x Optical Zoom, Auto Focus, DC-Iris, 4.7-94mm, F1.6 ~ F3.5 (HFOV: 3° ~ 55°)
• True Day Night with 0.26 Lux at F1.6 (Color) or 0.01 Lux at F1.6 (B/W)
• Pan/Tilt Speed: 0.05° ~ 450°/sec., 360° endless Pan and 110° Tilt Range
• Pan/Tilt/Zoom Functions: 256 presets, 128 presets per tour, Auto pan and Auto patrol mode
• On-board Recording Storage Slot type: SD, SDHC or SDXC card slot
• H.265, H.264 or MJPEG Compression
• H.265 & H.264: 60 fps at 1080P (1920 x 1080)
• MJPEG: 30 fps at 1080P (1920 x 1080)
• Video Streams 4 concurrent streams
• Individually Configurable video streams with Smart Stream II
• WDR Pro (Wide Dynamic Range): 100 dB
• EIS (Electronic Image Stabilization), 3DNR (3D Noise Reduction), defog
• In-depth Image Settings plus Time & text overlay, flip & mirror, privacy masks (up to 24), Scheduled profiles, EIS, 3DNR, defog
• Two-way Audio (Full duplex), Codecs G.711 or G.726 with External input/output
• Up to 10 live viewing web clients
• IT Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ICMP, ARP, SSL, and TLS
• ONVIF Supported and Open SDK for 3rd Party Security Systems
• Video Motion Detection Five-window video motion detection
• PTZ Auto-tracking on moving object
• Alarm Triggers: Motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, and audio detection
• Alarm Event notification via digital output, HTTP, SMTP, FTP, NAS & SD Card
• File upload via HTTP, SMTP, FTP, NAS & SD card
• Digital I/O: inputs 4/outputs 2
• RS-485 for traditional PTZ control
• Superior Weatherproof IP68 rated, Vandal-proof IK10-rated, NEMA 4X-rated
• Certificate Approvals: CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X
• Wide Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°C) Humidity 90%
• Power Input: 24VDC or 24VAC or 60 UPoE
• Power Consumption Max. 48/26 W (Heater on/off)
• Dimensions: Ø 162mm x 221mm
• Weight: 2.95 kg
• 3YR Warranty

Last Updated: July 27, 2016
