Vivotek SD9362-EH 30x H.265 2MP Dome PTZ IP Camera

Vivotek SD9362-EH 30x H.265 IP Dome PTZ Security Camera is a next era Pan/Tilt/Zoom IP Camera for pro IP Surveillance System demands. This unit is nearly identical to the Vivotek SD9362-EHL except that it includes a slightly larger 1/2.8" CMOS Image Sensor likewise offering vivid 1080P HD Video Capture in high frame rates up to 60fps. H.265 compression combined with Smart Stream II unveil bandwidth reduction like never before, while H.264 or MJPEG are also selectable in up to four independent video streams ensuring flexible network adaptation. True Day/Night function, WDR Pro, 3D DNR, EIS (image stabilizer) and other in-depth imaging options form a highly versatile PTZ IP Camera designed to conquer all kinds of lighting challenges. The unit is innovatively developed to include diverse management abilities including multi-web browser support with a rich and easy to use web interface. Similarity mobile applications to Free Vivotek CMS/NVR VAST Software or even 3rd party IP Camera Systems can easily integrate the Vivotek SD9362-EH PTZ for a complete security system solution.

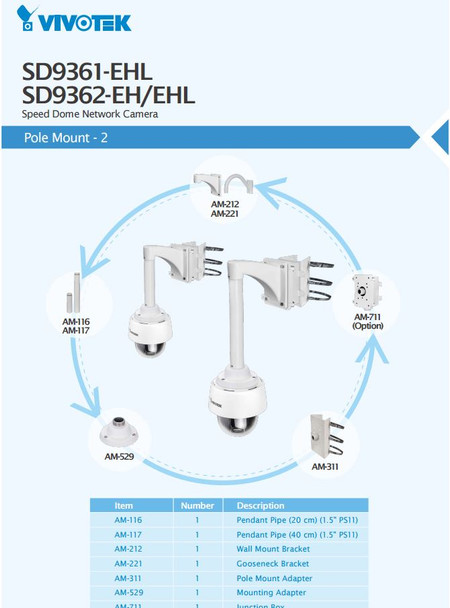

Outfitted with a 30x Optical Zoom, high Speed and highly accurate pan/tilt mechanism guarantees precise user or automated Pan/Tilt/Zoom movement. The PTZ provides all the common functions from preset positions and tours to auto pan or patrol modes for all types of requirements. Other perks like PTZ Auto Tracking combine with advantages like Two Way Audio, Digital I/O and On-board storage via Micro SDHC or SDXC card to event notification for completely stand-alone IP Security. Superbly constructed the Vivotek SD9362-EH feature an ultra-rugged IK10 high impact and vandal proof dome camera casing. The unit is also a the top of the charts with an IP68 and NEMA 4x weatherproof rating making it among the most outdoor ready IP PTZs on the market. Flexible Mounting options from pendant ceiling mount to parapet and pole mounts are all available while likewise multiple power input sources such as UPoE, 24VDC or 24VAC simply make installs easier.

Vivotek SD9362-EH HD PTZ Camera Features:

• 30x Optical Zoom
• H.265 Compression
• 1080P Full HD CMOS Sensor
• 60fps at full 1080P (1920x1080)
• True Day/Night ICR
• 360° Continuous Pan and 110° Tilt
• WDR Pro, SNV, 3DNR, Defog, EIS
• Smart Stream II for Optimal Bandwidth Efficiency
• Audio Detection, Video Motion Detection, PTZ Auto Tracking and more
• Built-in SD/SDHC/SDXC Card Slot for On-board Storage
• Weatherproof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
• -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
• 24VDC, 24VAC or UPoE Power Sources

Vivotek SD9362-EH More Specifications:

• 2 Megapixel (1920 x 1080) 1/2.8" Progressive CMOS Image Sensor
• 30x Optical Zoom, Auto Focus, DC-Iris, 4.7-129mm, F1.6 ~ F4.7 (HFOV: 2° ~ 64.9°)
• True Day Night with 0.53 Lux at F1.6 (Color) or 0.01 Lux at F1.6 (B/W)
• Pan/Tilt Speed: 0.05° ~ 450°/sec., 360° endless Pan and 110° Tilt Range
• Pan/Tilt/Zoom Functions: 256 presets, 128 presets per tour, Auto pan and Auto patrol mode
• On-board Recording Storage Slot type: SD, SDHC or SDXC card slot
• H.265, H.264 or MJPEG Compression
• H.265 & H.264: 60 fps at 1080P (1920 x 1080)
• MJPEG: 30 fps at 1080P (1920 x 1080)
• Video Streams 4 concurrent streams
• Individually Configurable video streams with Smart Stream II
• WDR Pro (Wide Dynamic Range): 100 dB
• EIS (Electronic Image Stabilization), 3DNR (3D Noise Reduction), defog
• In-depth Image Settings plus Time & text overlay, flip & mirror, privacy masks (up to 24), Scheduled profiles, EIS, 3DNR, defog
• Two-way Audio (Full duplex), Codecs G.711 or G.726 with External input/output
• Up to 10 live viewing web clients
• IT Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ICMP, ARP, SSL, and TLS
• ONVIF Supported and Open SDK for 3rd Party Security Systems
• Video Motion Detection Five-window video motion detection
• PTZ Auto-tracking on moving object
• Alarm Triggers: Motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, and audio detection
• Alarm Event notification via digital output, HTTP, SMTP, FTP, NAS & SD Card
• File upload via HTTP, SMTP, FTP, NAS & SD card
• Digital I/O: inputs 4/outputs 2
• RS-485 for traditional PTZ control
• Superior Weatherproof IP68 rated, Vandal-proof IK10-rated, NEMA 4X-rated
• Certificate Approvals: CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X
• Wide Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°C) Humidity 90%
• Power Input: 24VDC or 24VAC or 60 UPoE
• Power Consumption Max. 48/26 W (Heater on/off)
• Dimensions: Ø 162mm x 221mm
• Weight: 2.95 kg
• 3YR Warranty

Last Updated: July 27, 2016
