Vivotek SD9364-EHL H.265 2MP IR PTZ IP Camera 30x

Vivotek SD9364-EHL 30x IR PTZ IP Camera introduces a popular new style of infrared enabled Pan/Tilt/Zoom Security cameras and is packed with the latest technology advances. Generating High Definition 1080P video at up to 60fps and combined with H.265, plus Smart Stream II for optimal bandwidth efficiency these new age IR PTZs deliver HD video like never before. Not only equipped with Day/Night function but built for absolute night vision to 150 meters this PTZ has an auto-adjusting or variable IR LED illumination to perfectly match zoom ratio. Add in the image enhancements like 3D DNR, WDR Pro, EIS (image stabilization), Defog plus more and optimal video surveillance is a sure thing. Everything you would expect from a modern Vivotek PTZ Camera is including multi-browser support, intuitive web interface to mobile viewing applications or 3rd party ONVIF integration is richly provided.

In addition to a powerful 30x Optical Zoom paired with high power, variable IR Illumination for absolute night vision is a high speed, highly accurate Pan/Tilt mechanism for superior device control. Be it manually controlled movement or via the PTZ Auto tracking function, the PTZ enables wide area monitoring unlike anything before. Added benefits from Two Way Audio including Smart Audio Detection or Digital I/O with diverse event trigger options like FTP upload and Local Micro SDHC/SDXC Recording Storage to event notification are all on-board and readily accessible. Weatherproof IP66, NEMA 4X construction also with an IK10 high impact, vandal proof design and this Vivotek 30x H.265 HD IR PTZ IP Camera is built to withstand harsh outdoor environments. The PTZ allows 48VDC power input or is equipped with what has been referred to as Super Power PoE, the new 100W capable PoH or Power over HDBaseT standard which like PoE uses a single CAT5E or CAT6 network cable.

Vivotek SD9364-EHL Main Features:

• 2MP or 1080p HD CMOS Sensor
• 60fps at 1080p Full HD
• H.265, H.264 and MJPEG Compression (Triple Codec)
• Smart Stream II to Optimal Data Usage
• 30x Zoom Lens, 150 Meter IR LED Night Vision (VAIR Auto-Variable IR)
• True Day & Night Function
• 360° Continuous Pan and 220° Tilt
• WDR Pro 110db for Powerful Wide Dynamic Range
• 3D Privacy Masks, Defog, EIS and more
• Audio Detection, Video Motion Detection and PTZ Auto Tracking
• Built-in SD/SDHC/SDXC Card Slot for On-board Storage
• Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
• -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
• 100W PoH (PoE) or 48VDC

Vivotek SD9364-EHL More Specifications:

• 1/3" 2MP Progressive Scan CMOS
• Triple Video Codec: H265, H264 or MJPEG
• 60fps at full 1080P HD (1920 x 1080)
• Smart Stream II with up to four (4) individually configured, concurrent video streams
• 30x Optical Zoom, Auto Focus, DC-Iris 4.3~129mm, F1.6 ~ F4.7 (HFOV: 2.3° ~ 64°)
• WDR Pro (Wide Dynamic Range): 110 dB
• Auto Adjusting Smart IR Illumination for night vision to 150 meters
• Minimum Illumination 0.42 Lux at F1.6 (Color) or 0.001 Lux at F1.6 (B/W)
• Pan/Tilt Speed: 0.1° ~ 300° / sec
• 360 endless Pan Range and a Tilt Range of 220° (-110° ~ +110°)
• Pan/Tilt/Zoom functions: 256 preset positions, 128 presets per tour, Auto pan and Auto patrol mode
• Time stamp, text overlay, flip & mirror
• In-depth Image Settings, privacy masks (Up to 24), Scheduled profiles, defog, 3DNR, EIS
• Up to 10 Live viewing web clients
• IT Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, and NTCIP
• ONVIF Supported and open SDK
• Video Motion Detection Five-window video motion detection and PTZ Auto-tracking
• On-board Recording Storage: SD, SDHC or SDXC card slot
• Alarm/Event Triggers: Manual, periodic, system boot, recording notification, audio and video motion detection
• Alarm/Event notification via digital output, HTTP, SMTP, FTP and NAS
• File upload via HTTP, SMTP, FTP and NAS server
• Two Way Audio: input/output (full duplex) G.711, G.726
• Digital I/O: inputs 4/outputs 2
• RS-485 for PTZ control (Pelco D)
• Power Input: 95W PoH/PoE or 48VDC
• Power Consumption Max. 81.8 W (Heater on) Max. 28.5 W (Heater off)

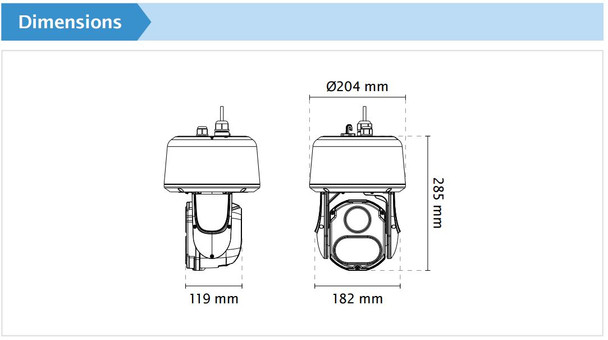

• Dimensions Ø: 204mm x 317.6mm
• Weight: 6030 grams
• Outdoor Weatherproof IP66, Vandal-proof IK10 and NEMA 4X-rated housing
• Safety Certifications: CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL
• Extreme Operating Temperature: -50°C ~ 55°C (-58°F ~ 131°F) Humidity 90%
• 3YR Warranty

Last Updated: July 27, 2016
